SwitchgearSteel Wire Reinforced PVC Pipes

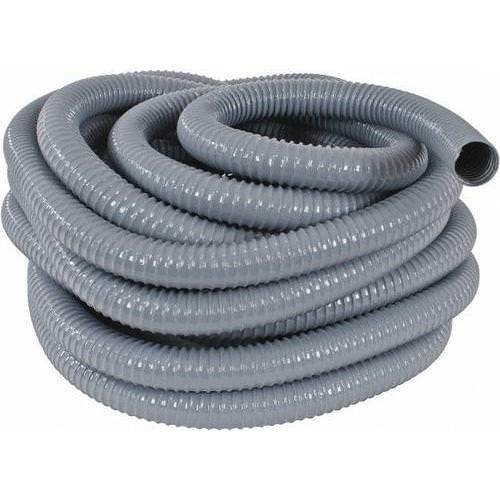

High Tensile PVC covered steel wire hose are thin walled and light in weight and are very flexible for industrial purposes. Sizes produced are 10 mm ID to 200 mm ID. Our hoses have a reinforcement of PVC insulated high carbon grade II spring steel wires from 200 Uts Kg/mm2 to 220 Uts Kg/ mm2 (United Tensile Strength). Also available in high grade III for heavy duty pipes.
| Inner Dia of Hose (mm) | Standard Pkgs. (mtrs) | Colour |
|---|---|---|
| 10 | 20 & above | Grey but other colours like Red, Blue, Black can be made on quantity order. |
| 15 | 20 & above | |
| 20 | 20 & above | |
| 25 | 20 & above | |
| 30 | 20 & above | |
| 40 | 20 & above | |
| 50 | 20 & above | |
| 60 | 20 & above | |
| 75 | 5 & above | |
| 100 | 5 & above | |
| 125 | 5 & above | |
| 150 | 5 & above | |
| 175 | 5 & above | |
| 200 | 5 & above |
- Easy to install
- Chemical resistance
- Optimum flexibility
- Fine finish
