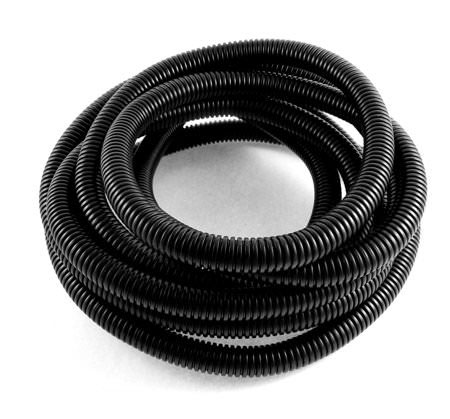

SwitchgearPVC Flexible Pipes
Our corrugated flexible pipes are made from extrusion process of PVC (Electrical) and are ideal replacement to conduit pipes. The pipes provide strength with flexibility. It is largely replacing conventional corrugated steel pipes, wire reinforced PVC pipes and plain rigid PVC conduit pipes.
Composition: Made from suitable plastic using specially designed moulds. Corrugations along the circumference of the pipe provide strength.
| Nominal Diameter (MM) |
Maximum Outside Diameter (MM) | Minimum Inside Diameter (MM) | Minimum Bending Radius (MM) |
Coil Length (Meters) | Master Packing (Meters) |
|---|---|---|---|---|---|
| 16 | 16 +/- 0.30 | 11.5 | 48 | 50 | 500 |
| 20 | 20 +/- 0.40 | 14.6 | 60 | 50 | 500 |
| 25 | 25 +/- 0.40 | 19 | 75 | 25 | 250 |
| 32 | 32 +/- 0.40 | 24.5 | 96 | 25 | 125 |
| 40 | 40 +/- 0.40 | 32 | 120 | 20 | 100 |
| 50 | 50 +/- 0.50 | 42.2 | 150 | 15 | 75 |
