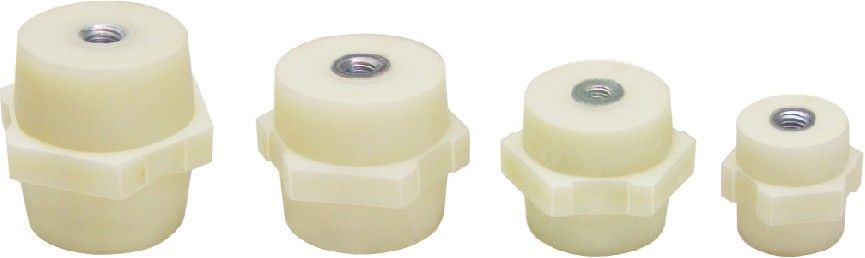

SwitchgearPolyamide Insulator
Polyamide Insulators have not only excellent mechanical, thermal, and chemical properties, but also excellent electrical properties, and thus are used widely as general insulating in electrical and electronics industry
| Part Code | H mm | AF mm | Dimensions Ø R mm | TL mm | Nominal Voltage (AC/DC) |
|---|---|---|---|---|---|
| PH 415 (M4) | 15 | 15 | 12 | 3.5 | 800/1100 |
| PH 420 (M4) | 20 | 18 | 15 | 5 | 1100/1500 |
| PH 620 (M6) | 20 | 18 | 15 | 5 | 1100/1500 |
| PH 525 (M5) | 25 | 20 | 15 | 7 | 1400/1900 |
| PH 625 (M6) | 25 | 20 | 15 | 7 | 1400/1900 |
| PH 630 (M6) | 30 | 30 | 25 | 9 | 1600/2200 |
| PH 830 (M8) | 30 | 30 | 25 | 9 | 1600/2200 |
| PH 635 (M6) | 35 | 40 | 33 | 9 | 1900/2600 |
| PH 835 (M8) | 35 | 40 | 33 | 9 | 1900/2600 |
| PH 1035 (M10) | 35 | 40 | 34 | 9 | 1900/2600 |
| PH 640 (M6) | 40 | 45 | 40 | 12 | 2200/3000 |
| PH 840 (M8) | 40 | 45 | 40 | 12 | 2200/3000 |
| PH 1040 (M10) | 40 | 45 | 40 | 12 | 2200/3000 |
| PH 845 (M8) | 45 | 50 | 40 | 12 | 2500/3500 |
| PH 1045 (M10) | 45 | 50 | 40 | 12 | 2500/3500 |
| PH 650 (M6) | 50 | 50 | 40 | 12 | 2800/3900 |
| PH 850 (M8) | 50 | 50 | 40 | 17 | 2800/3900 |
| PH 1050 (M10) | 50 | 50 | 40 | 17 | 2800/3900 |
| PH 860 (M8) | 60 | 54 | 45 | 17 | 3300/4600 |
| PH 1060 (M10) | 60 | 54 | 45 | 17 | 3300/4600 |
| PH 1260 (M12) | 60 | 54 | 45 | 17 | 3300/4600 |
| PH 1270 (M12) | 70 | 65 | 50 | 21 | 3900/5400 |
| PH 1670 (M16) | 70 | 65 | 50 | 21 | 3900/5400 |
| PH 1275 (M12) | 75 | 65 | 50 | 21 | 4200/5800 |
| PH 1675 (M16) | 75 | 65 | 50 | 21 | 4200/5800 |
| PH 1280 (M12) | 80 | 65 | 50 | 26 | 4500/6300 |
| PH 1680 (M16) | 80 | 65 | 50 | 26 | 4500/6300 |
| PH 12100 (M12) | 100 | 65 | 50 | 26 | 5600/7800 |
| PH 16100 (M16) | 100 | 65 | 50 | 26 | 5600/7800 |
- Material: Polyamide / Nylon 6/6
- All Dimensions are in MM
- TL: Effective Thread Length
- All Insulators are certified
- Insert: Aluminum / Brass / Steel (Zinc Passivated) / Stainless Steel
