SwitchgearPE Corrugated Flexible Pipes

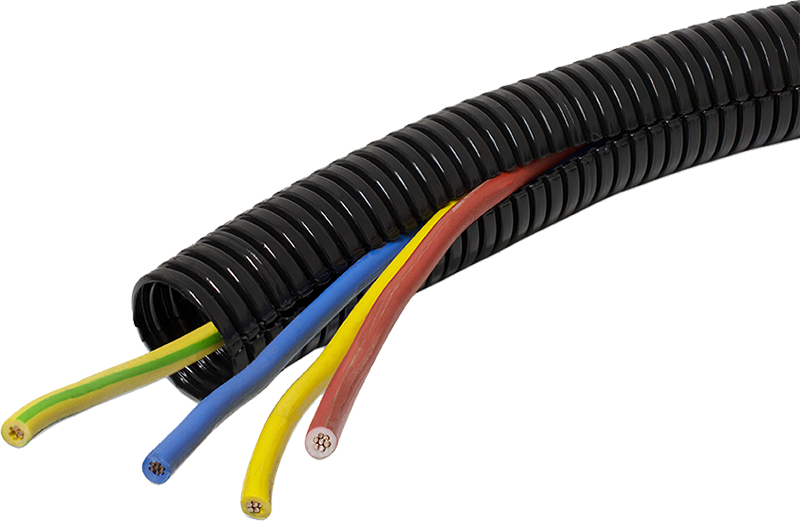

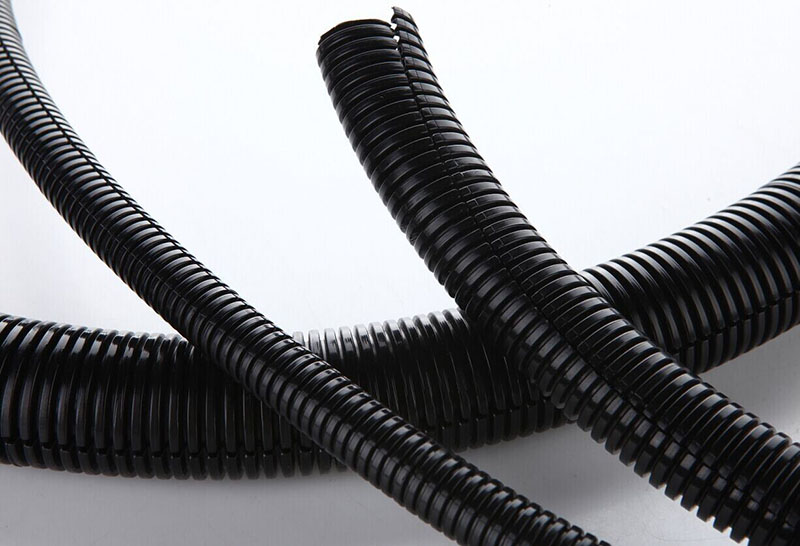

Flexible conduit is commonly used for the protection and containment of vulnerable electrical cables, wiring and fibre optics. It is an extremely effective form of cable management, available in a variety of systems, which can cope with a diverse range of environmental factors and operating conditions.
With PE as a raw material, it provides high flexibility and high fatigue life. Also, it has high resistance to solvents, oils and acids.
With PE as a raw material, it provides high flexibility and high fatigue life. Also, it has high resistance to solvents, oils and acids.
| Size (I.D to O.D) |
Standard Length / Roll | Standard Master Packing |
|---|---|---|
| 10 mm – 13 mm | 100 Meters | 1000 Meters |
| 12 mm – 16 mm | 50 Meters | 500 Meters |
| 15 mm – 21 mm | 50 Meters | 500 Meters |
| 20 mm – 25 mm | 50 Meters | 250 Meters |
| 22 mm – 28 mm | 25 Meters | 125 Meters |
| 25 mm – 32 mm | 25 Meters | 125 Meters |
| 34 mm – 40 mm | 25 Meters | 125 Meters |
| 43 mm – 50 mm | 25 Meters | 125 Meters |
- Temperature range: -20°C to +90°C
- Application: Mechanic equipment and machine production, aviation and aerospace industries, general industrial areas, malls, lighting and electrical installation panel as well as automotive sector
- Colour: RAL 7031 & RAL 9005.
- UV Stabilized Pipe can be manufactured on request against minimum order quantity.
- Available in Slitted type for easy Machine wiring and maintenance.
