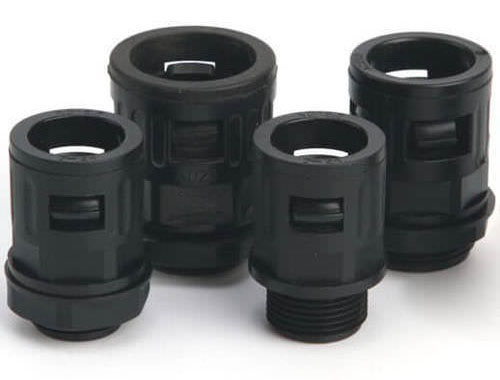

SwitchgearGlands for Polyamide Pipes
These connectors are used to clamp flexible corrugated conduits. They offer IP67 protection and are available in PG & Metric Thread.
| Assembly Threading | Suitable for Nylon Pipe (Internal ID) | Standard Packing |
|---|---|---|
| PG - 9/10 | 10 mm | 200 Nos |
| PG - 11/12 | 12 mm | 125 Nos |
| PG - 16/16 | 16 mm | 80 Nos |
| PG - 21/22 | 22 mm | 48 Nos |
| PG - 29/29 | 29 mm | 30 Nos |
| PG - 36/36 | 36 mm | 18 Nos |
| PG - 48/48 | 48 mm | 12 Nos |
| Material | Polyamide 6 |
| Colour | RAL 9005 (Black) |
| Temperature Range | -40° C to + 105° C Continuous, + 150° C Short Term |
| Protection Class | IP 67 |
| Threads Available | PG & Metric |
