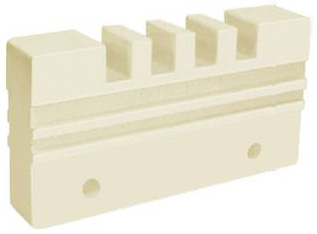

SwitchgearFinger Type Support

Busbar	Part Number	A (max)	B	C	D	E	Fmax	Sd
6mm x 1R	106S	7	50	22	14	10	-	15
10mm x 1R	110S	11	50	22	14	10	-	15
12mm x 1R	112S	13.7	50	22	14	10	-	15
6mm x 1R	106W	7	60	32	14	10	-	15
10mm x 1R	110W	11	60	32	14	10	-	15
12mm x 1R	112W	13.7	60	32	14	10	-	15
6mm x 1R	106K	7	70	40	20	16	-	15
10mm x 1R	110K	11	70	40	20	16	-	15
12mm x 1R	112K	13.7	70	40	20	16	-	15
6mm x 1R	106T	7	70	40	25	20	-	15
10mm x 1R	110T	11	70	40	25	20	-	15
12mm x 1R	112T	13.7	70	40	25	20	-	15

Busbar		A (max)	B	C	D	E	Fmax	Sd
6mm x 2R	7.1	7.1	60	32	14	10	5.6	15
10mm x 2R	10.8	10.8	60	32	14	10	9.6	15
12mm x 2R	13.7	13.7	60	32	14	10	11	15
6mm x 2R	7.1	7.1	70	40	20	16	5.6	15
	19.8	19.8	70	40	20	16		15
10mm x 2R	10.8	10.8	70	40	20	16	9.6	15
	31.2	31.2	70	40	20	16		15
12mm x 2R	13.7	13.7	70	40	20	16	11	15
	38.4	38.4	70	40	20	16		15
6mm x 2R	7.1	7.1	70	40	25	20	5.6	15
	19.8	19.8	70	40	25	20		15
10mm x 2R	10.8	10.8	70	40	25	20	9.6	15
	31.2	31.2	70	40	25	20		15
12mm x 2R	13.7	13.7	70	40	25	20	11	15
	38.4	38.4	70	40	25	20		15

Busbar	Part Number	A (max)	B	C	D	E	Fmax	Sd
6mm x 3R	306W	7	70	32	14	10	5.4	15
10mm x 3R	310W	11	80	50	14	10	9.4	15
12mm x 3R	312W	13.2	90	50	15	11	11.4	15
6mm x 3R	306K	7	70	40	20	16	5.4	15
10mm x 3R	310K	11	100	50	20	16	9.4	15
	151K	51.6	100	50	20	16		15
12mm x 3R	312K	13.2	100	50	20	16	11.4	15
6mm x 3R	306T	7	70	40	25	20	5.4	15
10mm x 3R	310T	11	100	50	25	20	9.4	15
	151T	51.6	100	50	25	20		15
12mm x 3R	151T	13.2	100	50	25	20	11.4	15
