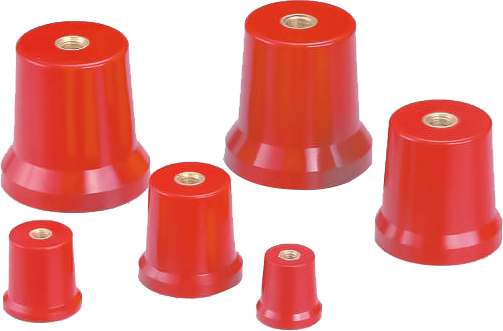

SwitchgearDMC Conical Busbar Insulator
Insulators (Bus bar supporters) are used in control panel and switchgears Electrical & Electronics Industry
| Part No. | Height | Head Ø | Bottom Ø | TL | Nominal Voltage |
|---|---|---|---|---|---|
| (Insert) | (H)mm | mm | mm | mm | (Ac/Dc) |
| C 625 (M6) | 25 | 19 | 25 | 7 | 1000/1400 |
| C 630 (M6) | 30 | 25 | 30 | 7 | 1200/1600 |
| C 830 (M8) | 30 | 25 | 30 | 9 | 1200/1600 |
| C 835 (M8) | 35 | 28 | 35 | 12 | 1400/1900 |
| C 640 (M6) | 40 | 33 | 40 | 12 | 1600/2200 |
| C 840 (M8) | 40 | 33 | 40 | 12 | 1600/2200 |
| C 1040 (M10) | 40 | 33 | 40 | 12 | 1600/2200 |
| C 845 (M8) | 45 | 33 | 40 | 12 | 1800/2500 |
| C 1050 (M10) | 50 | 40 | 50 | 17 | 2000/2800 |
| C 1250 (M12) | 50 | 40 | 50 | 17 | 2000/2800 |
| C 1060 (M10) | 60 | 40 | 50 | 17 | 2400/3300 |
| C 1260 (M12) | 60 | 40 | 50 | 17 | 2400/3300 |
| C 1070 (M10) | 70 | 41 | 50 | 22 | 2800/3900 |
| C 1270 (M12) | 70 | 41 | 50 | 22 | 2800/390 |
- Material: DMC (Dough Moulding Compound) (Halogen Free)
- All Dimensions are in MM
- TL: Effective Thread Length
- For technical details of Busbar support & Insulator, please request us for technical details
- For checking the suitability of a support & insulator for a fault current, please request us for technical details & assistance.
